H350MF HYDRAULIC HAMMER

Short Description:

TECHNICAL FEATURES OF H350MF HYDRAULIC HAMMER

H350MF hydraulic hammer is a hydraulic hammer with simple structure, which uses hydraulic energy to lift the hammer core,

and then hammers the pile end with gravity potential energy. Its working cycle is: lift hammer, drop hammer, injection, reset.

H350MF hydraulic hammer is compact in structure, wide in application, suitable for construction of various pile types, and

widely used in pile foundation construction of buildings, Bridges, docks, etc.

Send email to us Download as PDF

Product Detail

Product Tags

TECHNICAL FEATURES OF H350MF HYDRAULIC HAMMER

H350MF hydraulic hammer is a hydraulic hammer with simple structure, which uses hydraulic energy to lift the hammer core,and then hammers the pile end with gravity potential energy. Its working cycle is: lift hammer, drop hammer, injection, reset.

H350MF hydraulic hammer is compact in structure, wide in application, suitable for construction of various pile types, andwidely used in pile foundation construction of buildings, Bridges, docks, etc.

MAIN CHARACTERISTICS

Low noise, low vibration, energy?saving, environmental protection,reliable;

The hydraulic hammer is powered by the?hydraulic system. Compared with the traditional?diesel hammer, it has the characteristics of low?noise, low pollution and high energy conversion?efficiency.

The power cabinet is driven by multiple motors,?with good economy, reliability and overall perfor mance.

System parameter configuration is reasonable,?the working cycle pressure fluctuation is small,?pipeline channeling momentum is small.

Composite pile cap with compact structure and?polymer pile pad can protect the pile end to the?greatest extent, especially suitable for PHC pile?construction.

Double-acting mode, high energy
core mass ratio; Reliability system, Excellent compre?hensive mechanical performance; Hydraulic pump, hydraulic valve, hydraulic cylinder with high quality accessories, with good vibration absorption, impact resistance, wear resistance and other characteristics, high system reliability; Hammer core material and heat treatment, fully consider the temperature, wear resistance, vibration absorption, impact and other comprehensive mechanical perfor mance factors; High and low pressure accumulators adopt piston type, compact structure and high reliability;

Flexible configuration, wide application range and?strong adjustment and control ability;

Composite pile cap is adopted to facilitate the replacement of?pile cap, suitable pile cap can be replaced according to the?shape and specification of pile, suitable for various materials?and shapes of pile, the impact force and impact frequency of?pile hammer can be adjusted and controlled at any time according to the geological situation and the material strength of pile.

Using combined hammer core, the maximum energy output can?be customized according to customer requirements;

Hydraulic hammer control mode is optional, including relay?control mode with low distribution and PLC control mode with?high distribution.

Integrated control valve, quick response, high energy utilization.

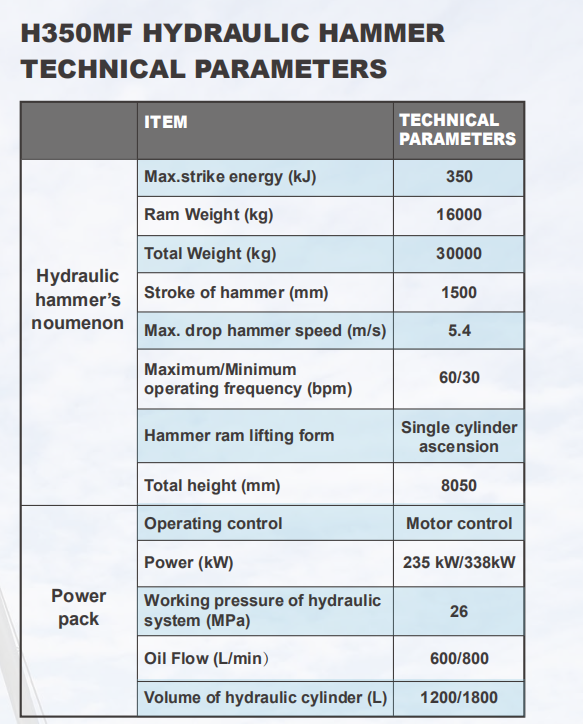

H350MF HYDRAULIC HAMMER
TECHNICAL PARAMETERS

Flexible configuration, wide application range and?strong adjustment and control ability;
Composite pile cap is adopted to facilitate the replacement of?pile cap, suitable pile cap can be replaced according to the?shape and specification of pile, suitable for various materials?and shapes of pile, the impact force and impact frequency of?pile hammer can be adjusted and controlled at any time according to the geological situation and the material strength of pile.
Using combined hammer core, the maximum energy output can?be customized according to customer requirements;
Hydraulic hammer control mode is optional, including relay?control mode with low distribution and PLC control mode with?high distribution.
Integrated control valve, quick response, high energy utilization.
